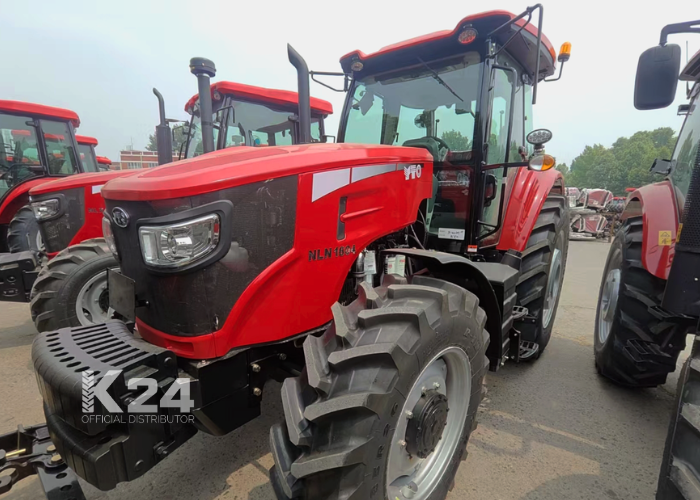

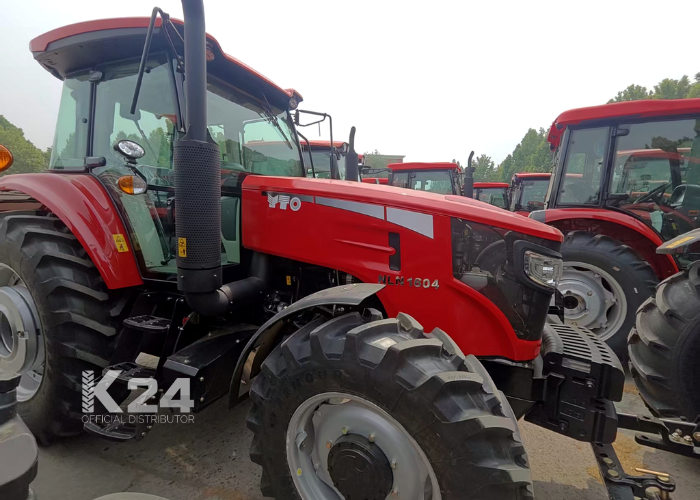

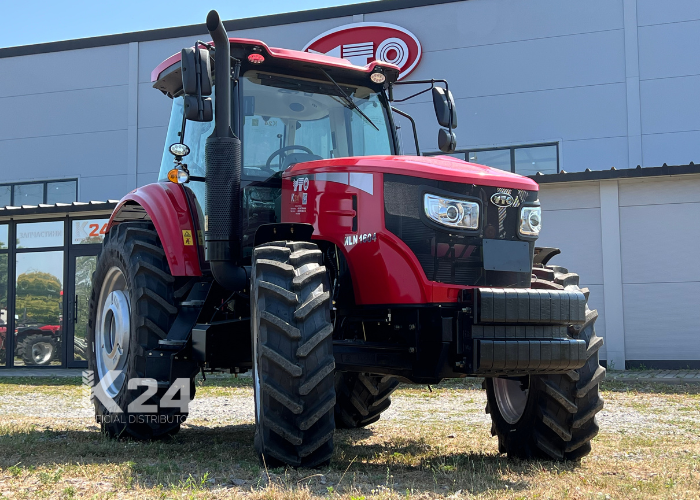

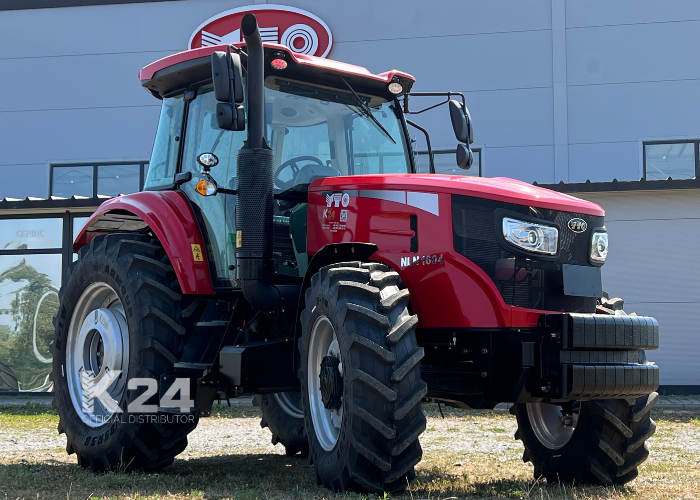

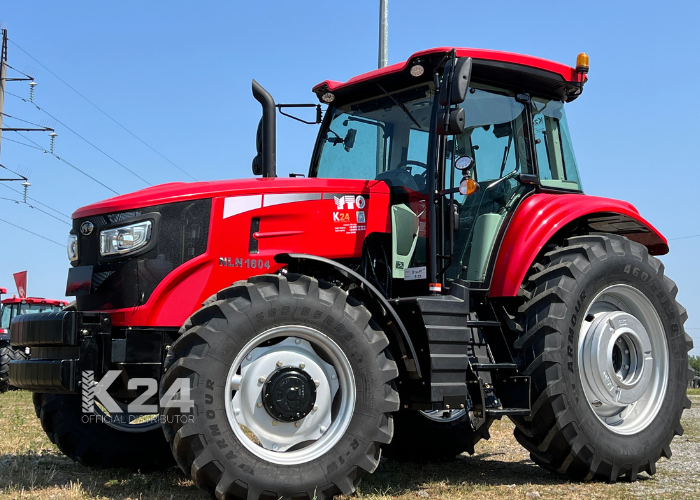

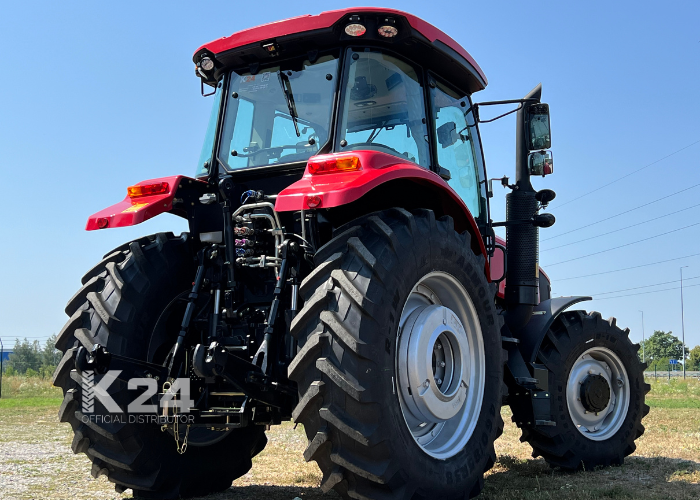

YTO NLN 1604 tractor

New YTO NLN 1604 tractor

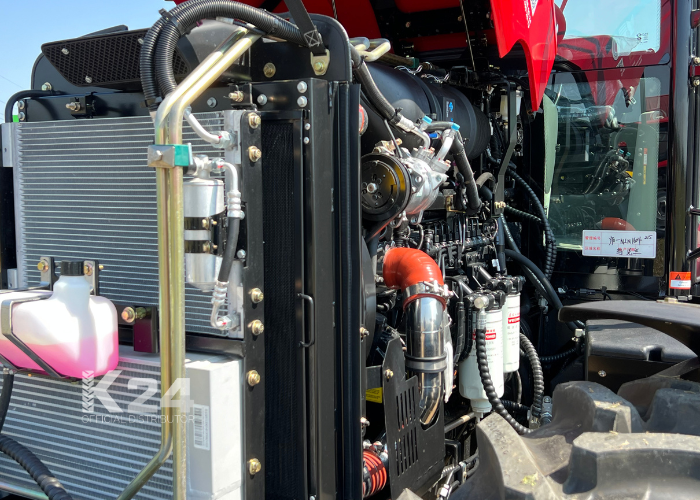

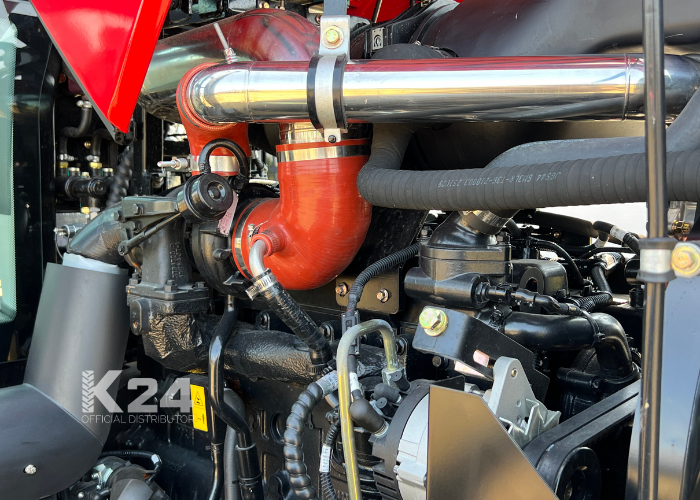

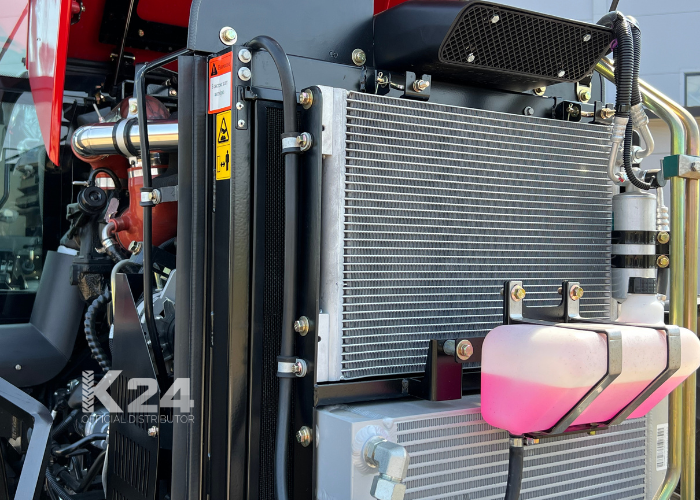

• Engine:LR6A3LR22, 6-cylinder diesel engine, liquid-cooled, with turbocharger and intercooler
• Working volume, l:6.49 common rail fuel system with a Bosch control unit
• Power:160 hp (118 kW), the engine has a power reserve of 30%
• Air filter:two-stage, with paper elements and clogging alarm

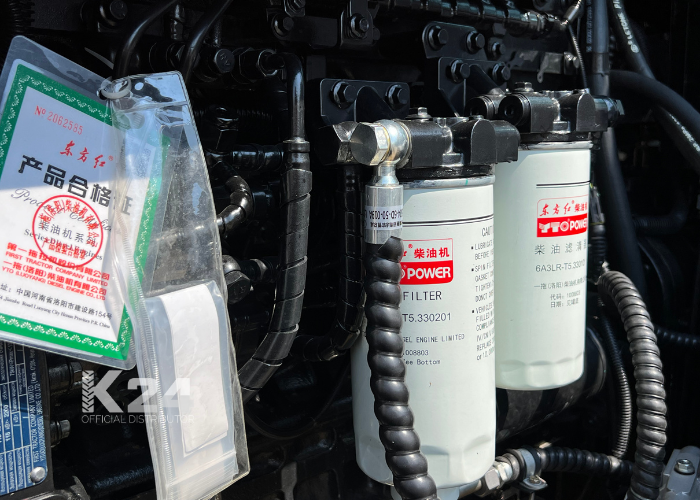

• Fuel filtration system:a coarse fuel filter and two fine fuel filters
• Clutch:LUK (Germany), single-disc, dual-action, 15” diameter
• KP: type/ manufacturer:mechanical / YTO

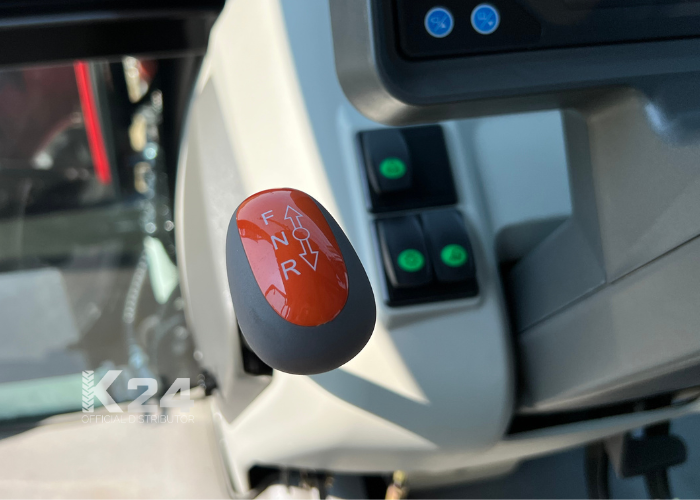

• Transmission: number of forward/reverse gears:32 forward / 32 reverse (with synchronizers, reverse and speed reducer)
• Hydraulic system type:open type / separate
• Hydraulic system type of pump/drive:gear pump / engine-driven
• Hydraulic system hydraulic pump productivity, l/min:60

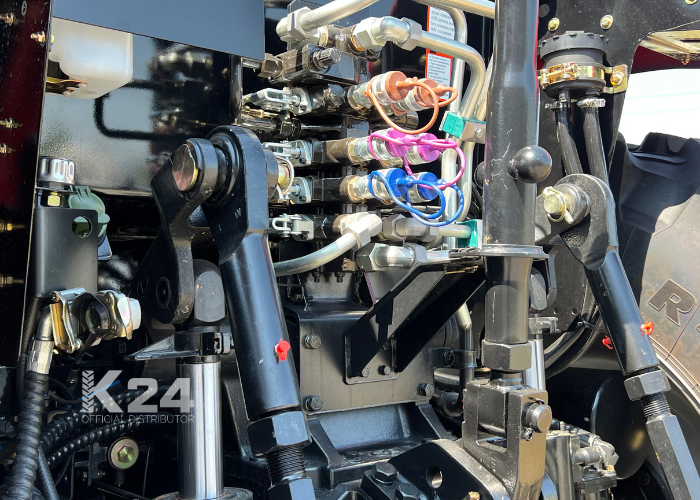

• Hydraulic system, number of hydraulic outlets:3 pairs + 1 continuous drain

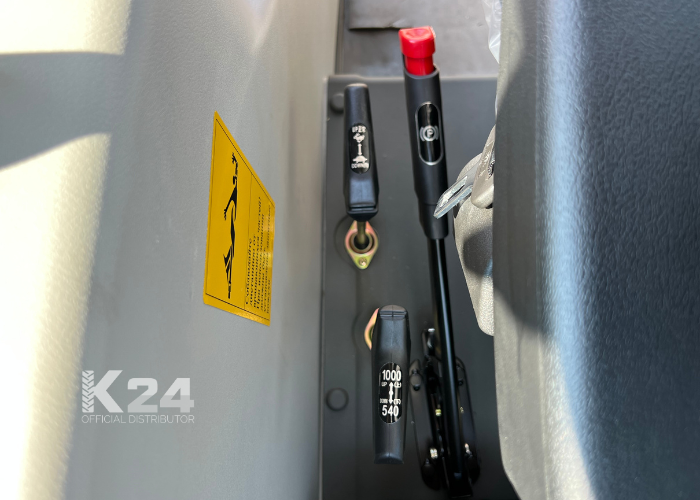

• GDP of revolutions, rpm:540 /1000

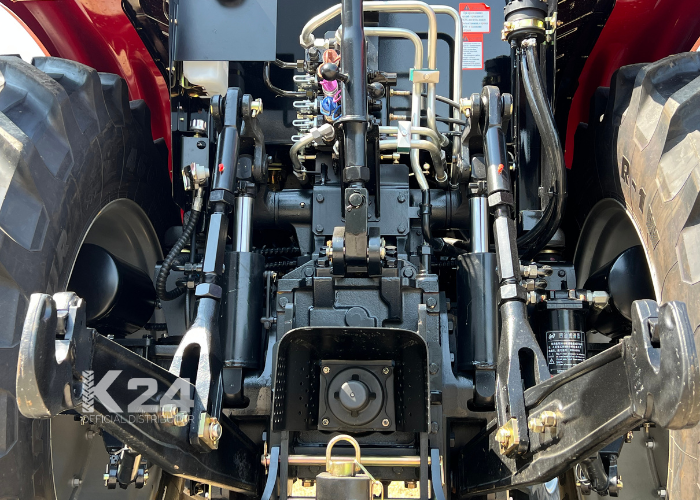

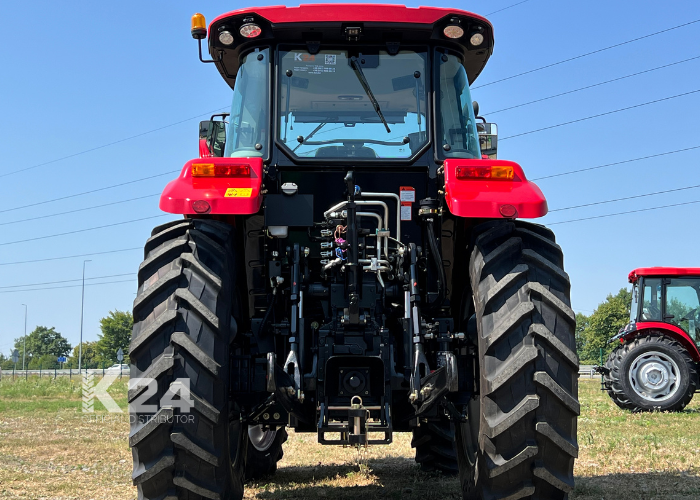

• Attachment: category/number of hydraulic cylinders:category II–III / 1 central + 2 auxiliary hydraulic cylinders
• Load capacity of the attachment, kg:4700
• Attachment functions:power adjustment, positional adjustment, floating position
• Differential lock:hydraulic
• Engaging the front axle:mechanical

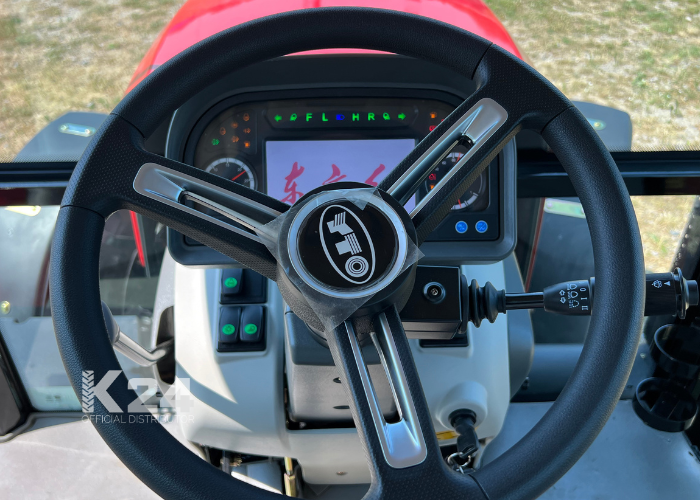

• Steering:hydraulic, independent

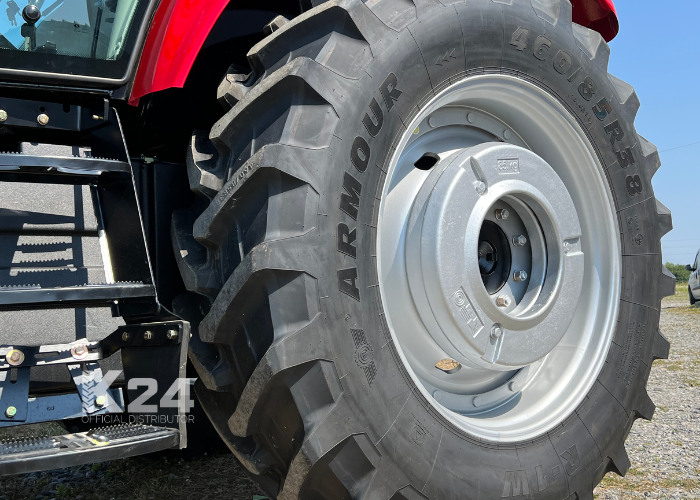

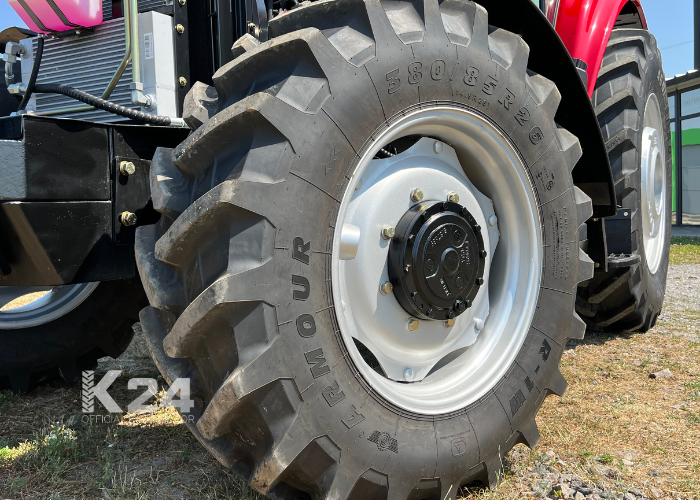

• Front/rear tire size:380/85R28 / 460/85R38
• Track adjustment: front/rear, mm:1714-2152 / 1766-2258
• Service brakes:disc brakes, in an oil bath, hydraulically operated
• Fuel tank capacity, l:275
• Basic dimensions: (LxWxH), mm:5340x2770x3310
• Wheel base, mm:2713
• Clearance, mm:465
• Operating weight, kg:6700
• Weight with counterweights, kg:7440

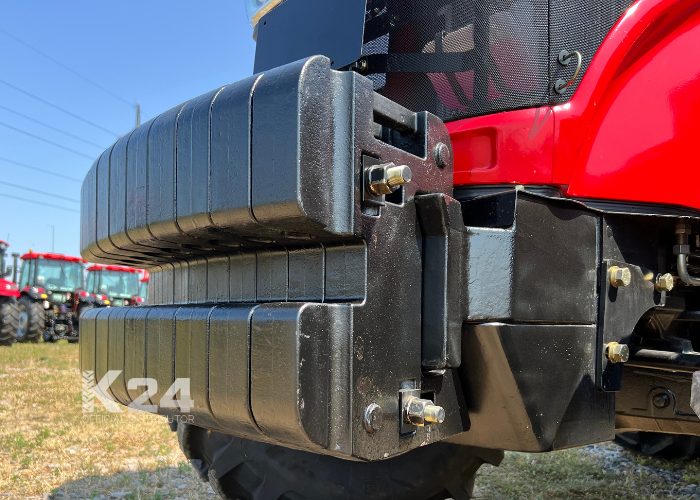

• Including counterweight weight, kg:10×40 front, 4×85 wheel

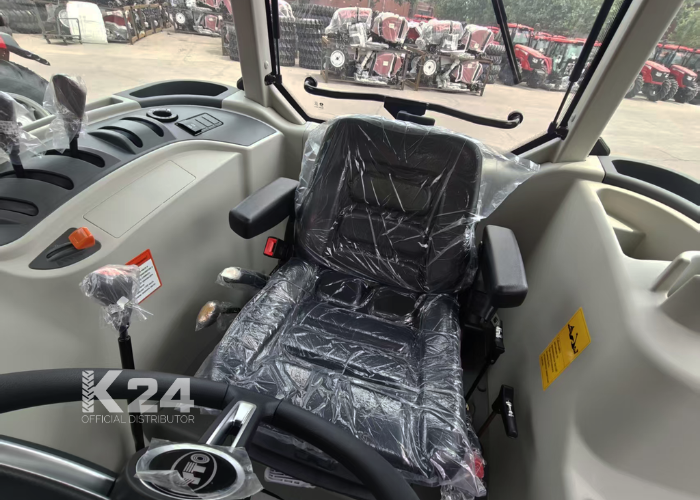

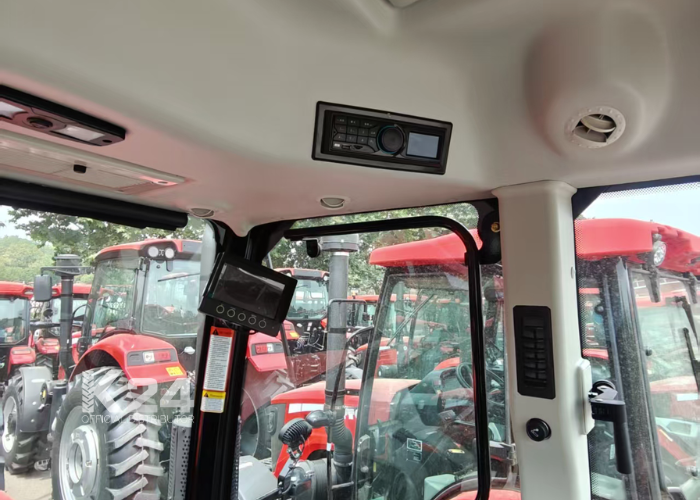

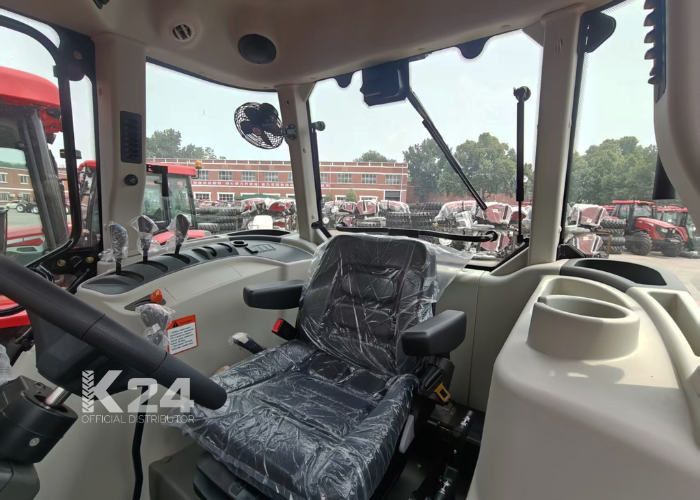

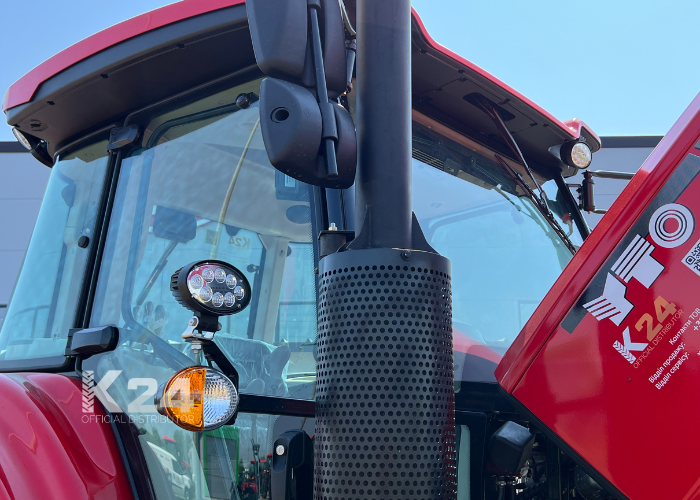

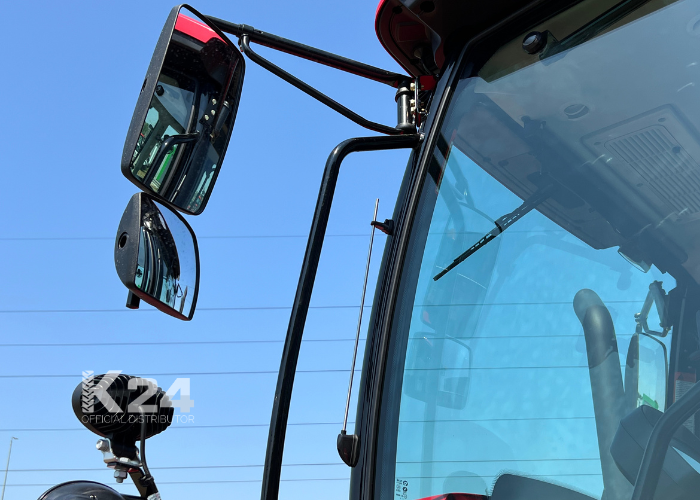

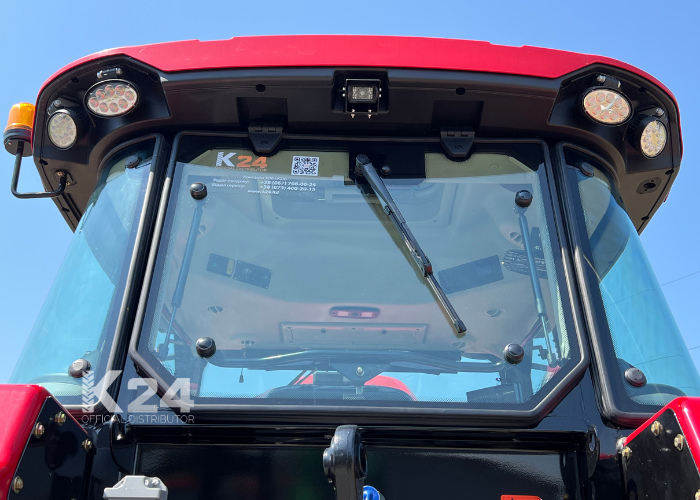

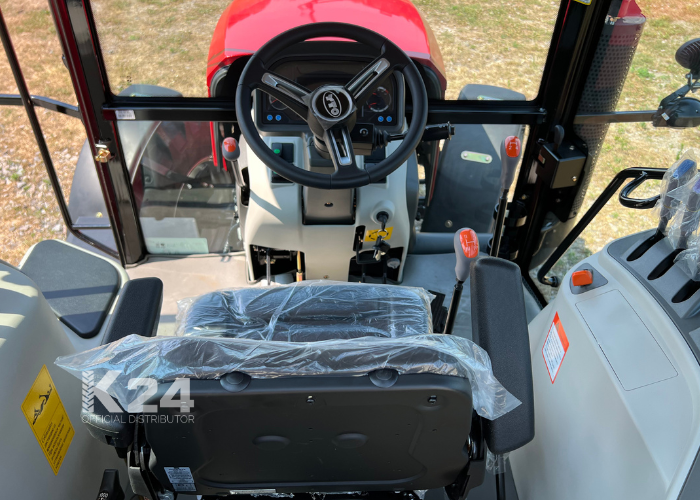

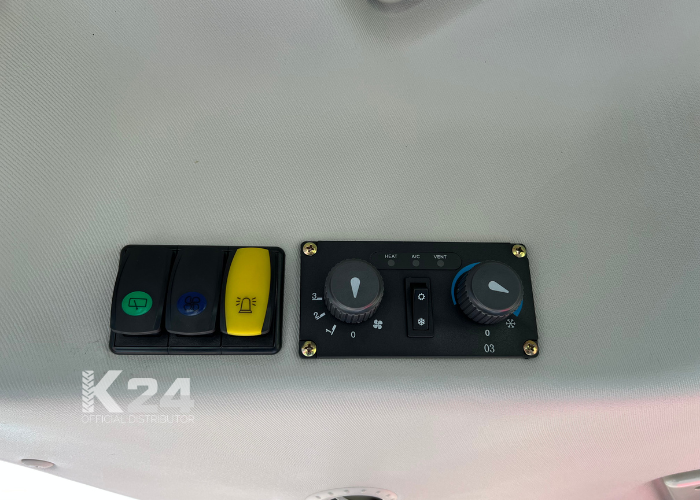

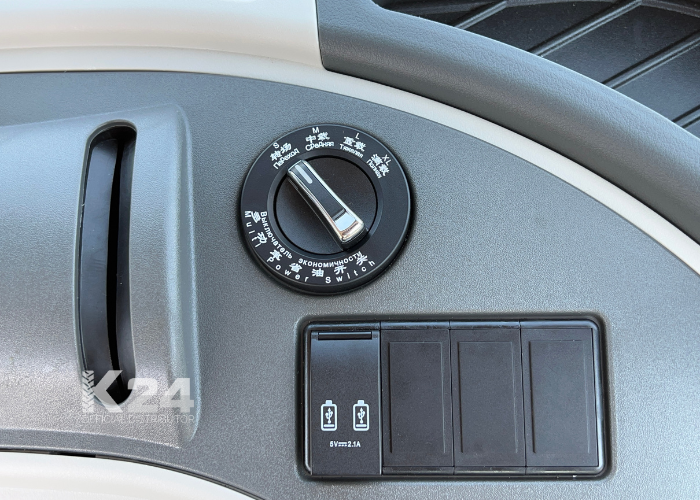

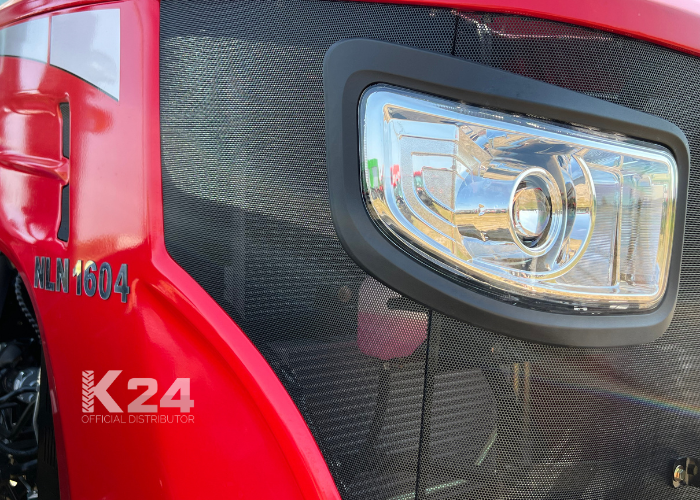

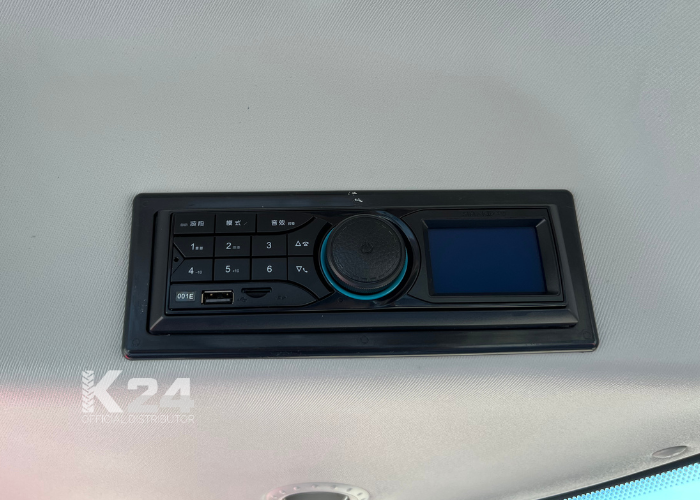

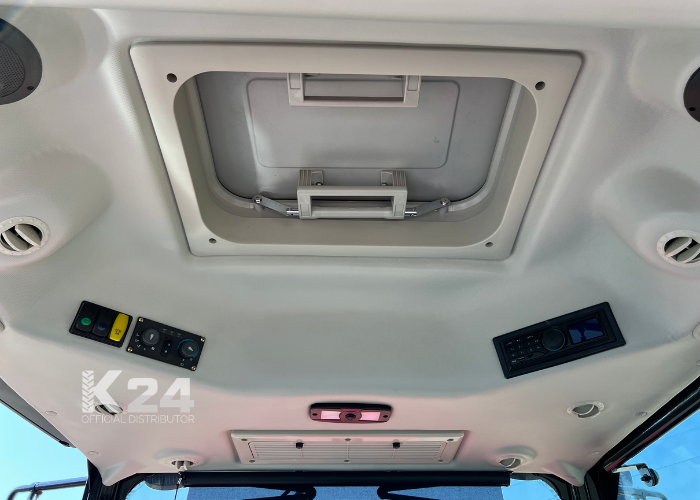

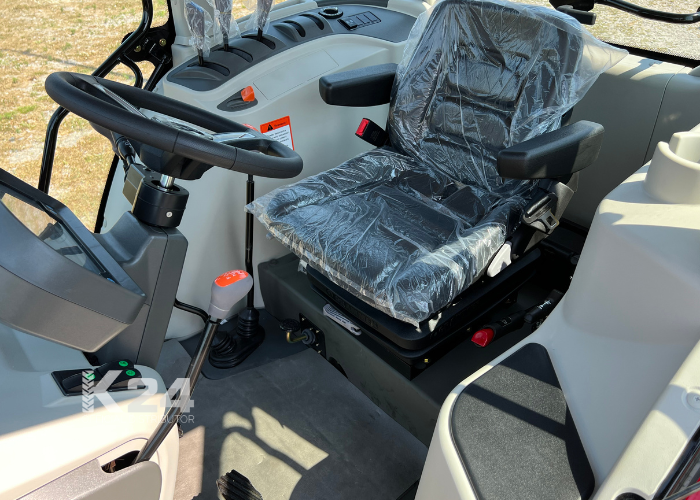

Package of additional cabin equipment (included in the price): air conditioning, cab charcoal filter, heater, rear-view camera with monitor, LCD instrument panel display, radio with MP3 player, 12V socket, USB, fridge, sun blind, CRAMMER DS85H/90 comfort seat (with seatbelt), additional seat, rear-view mirror, thick, continuous sound-insulating carpet, plastic interior trim, dual-circuit trailer air brake system with compressor; trailer coupling, external hitch control lever, front windscreen washer. Additional LED work lights: 6 at the front and 4 at the rear. Improved cabin ventilation system. Cab sunroof, engine power control unit with 4 modes.
